Footprint: 70m? | Floor area: 114m? | 3 Bedroom | 2 Bathroom
Tiny 70
A house with a functional attic for a 3-4 person family. It’s a compact building, but a few clever design choices make it appear larger than it actually is. On the ground floor, there is a living room and a bedroom, while the attic features two bedrooms and a walk-in closet. Both floors have bathrooms, and the upstairs bathroom can accommodate two sinks and a large shower. Additionally, on the ground floor, there is a utility room where we will place the heat pump and the hot water tank. This house can be built on a small plot of land, as the footprint is only 70m2.
L – 13,32m
W – 5,32m
Footprint – 70m?
Floor area – 114m? (59+55)

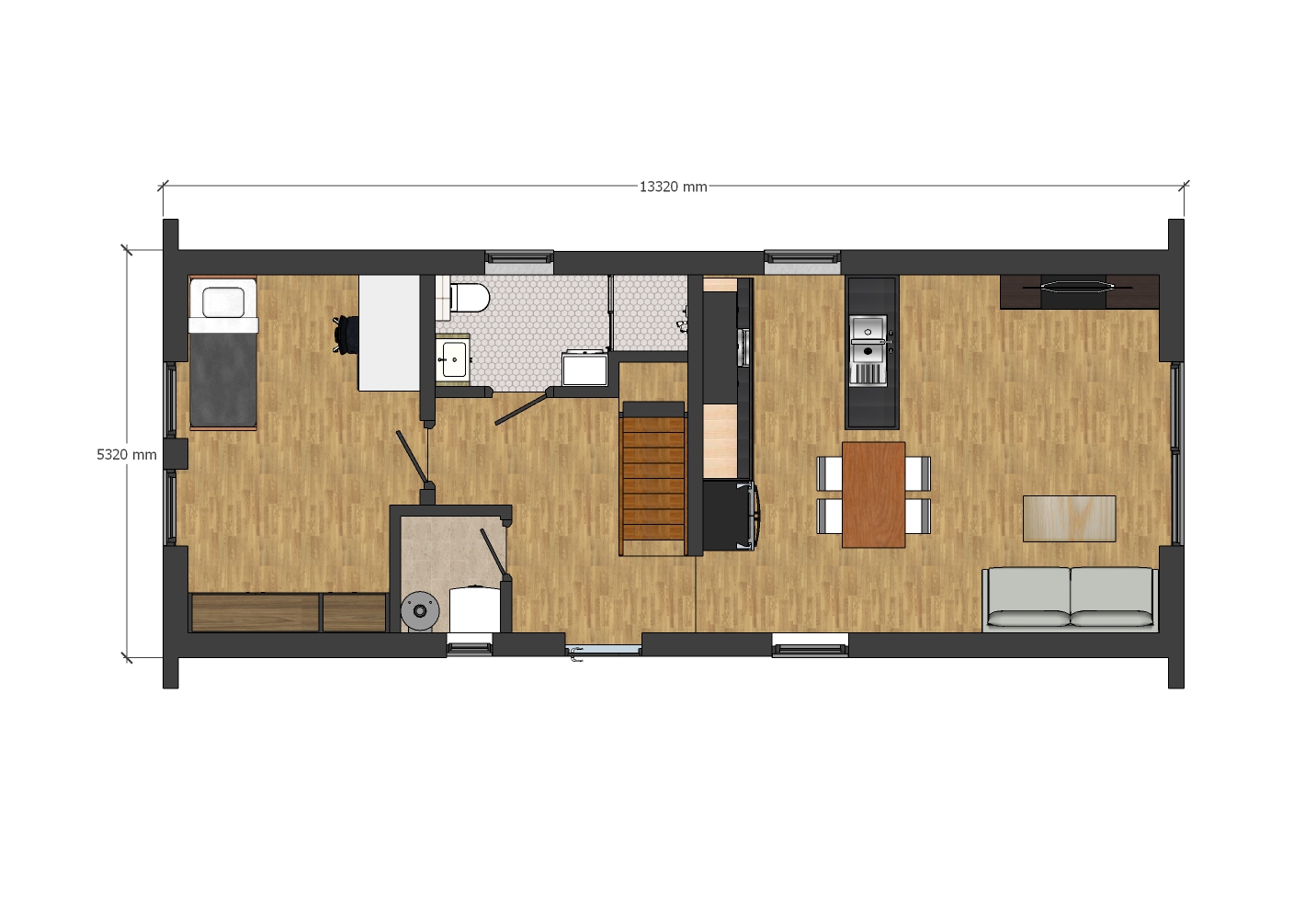

Floor 0:
Bedroom – 13,8m?
Bathroom – 4,3m?
Salon – 28m?
Tech-room – 2m?
Hallway – 7m?
Under stairs – 3,3m?

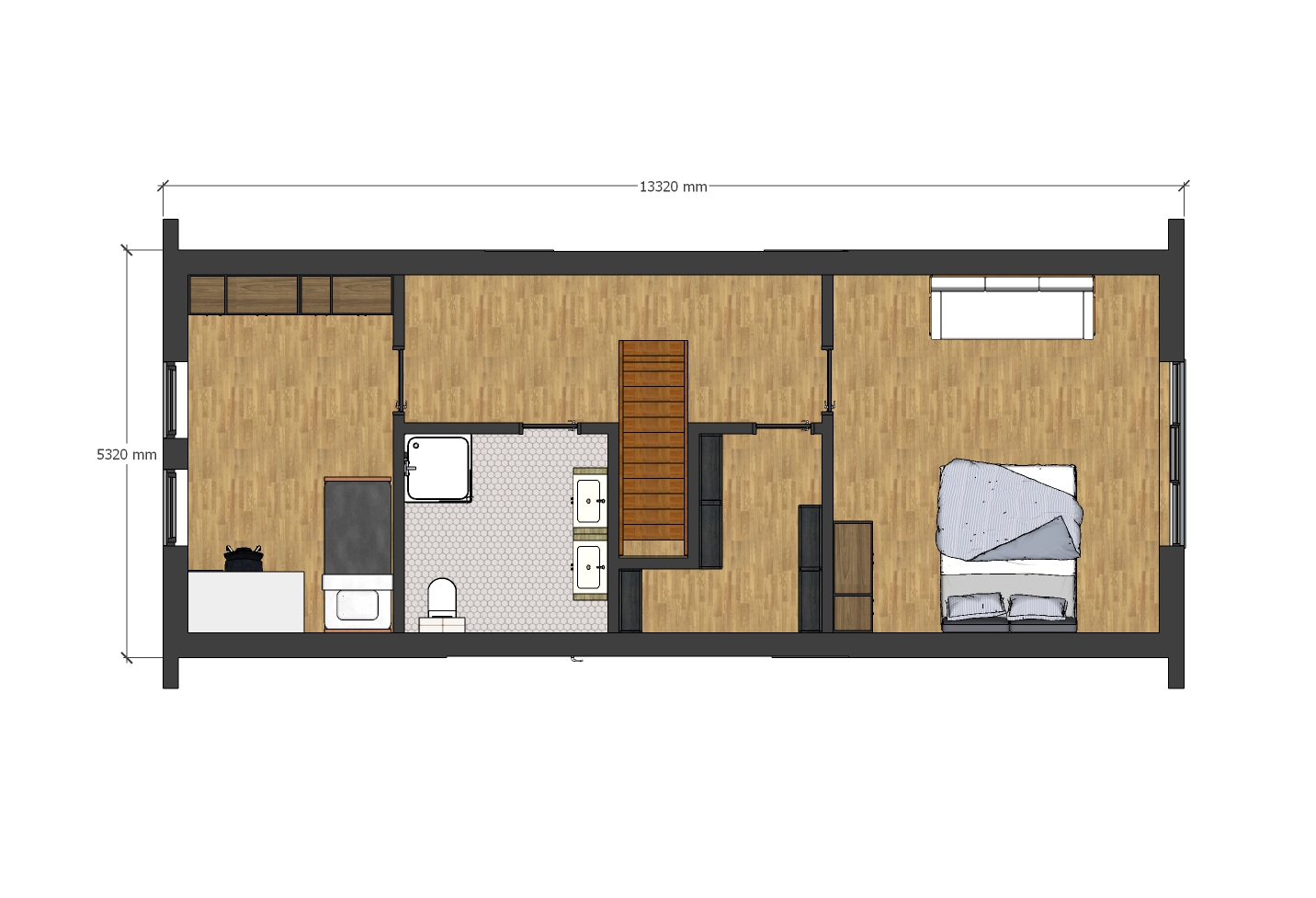

Floor 1:
Bedroom 1 – 12,5m?
Bedroom 2 – 20,7m?
Bathroom – 7m?
walk-in closet – 5,1m?
Hallway – 9,8m?
Foundation – Swedish foundation concrete slab
Walls – Wood frame C24
Ceiling – Wood construction C24
Roof – Roof trusses
Floor insulation – 200mm EPS/XPS
Wall insulation – 250mm Isover wool
Roof insulation – 300mm Isover wool
Heating source and DHW (Domestic Hot Water) – air-to-air heat pump
Heating – Underfloor heating on the ground floor and first floor
Ventilation – Mechanical ventilation with wall-mounted heat recovery units
290 000 zł net – shell condition
465 000 zł net – tenant finish
